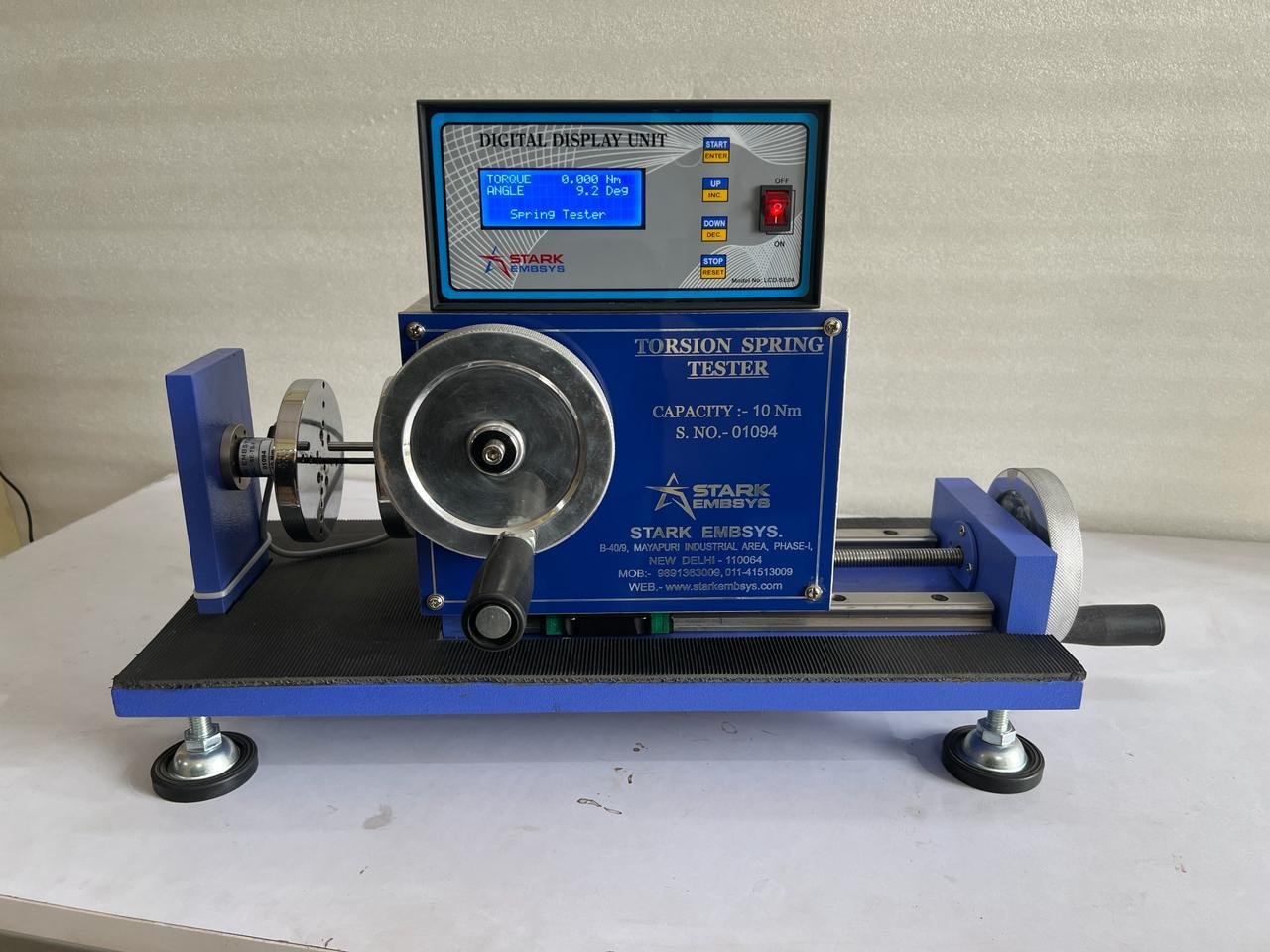

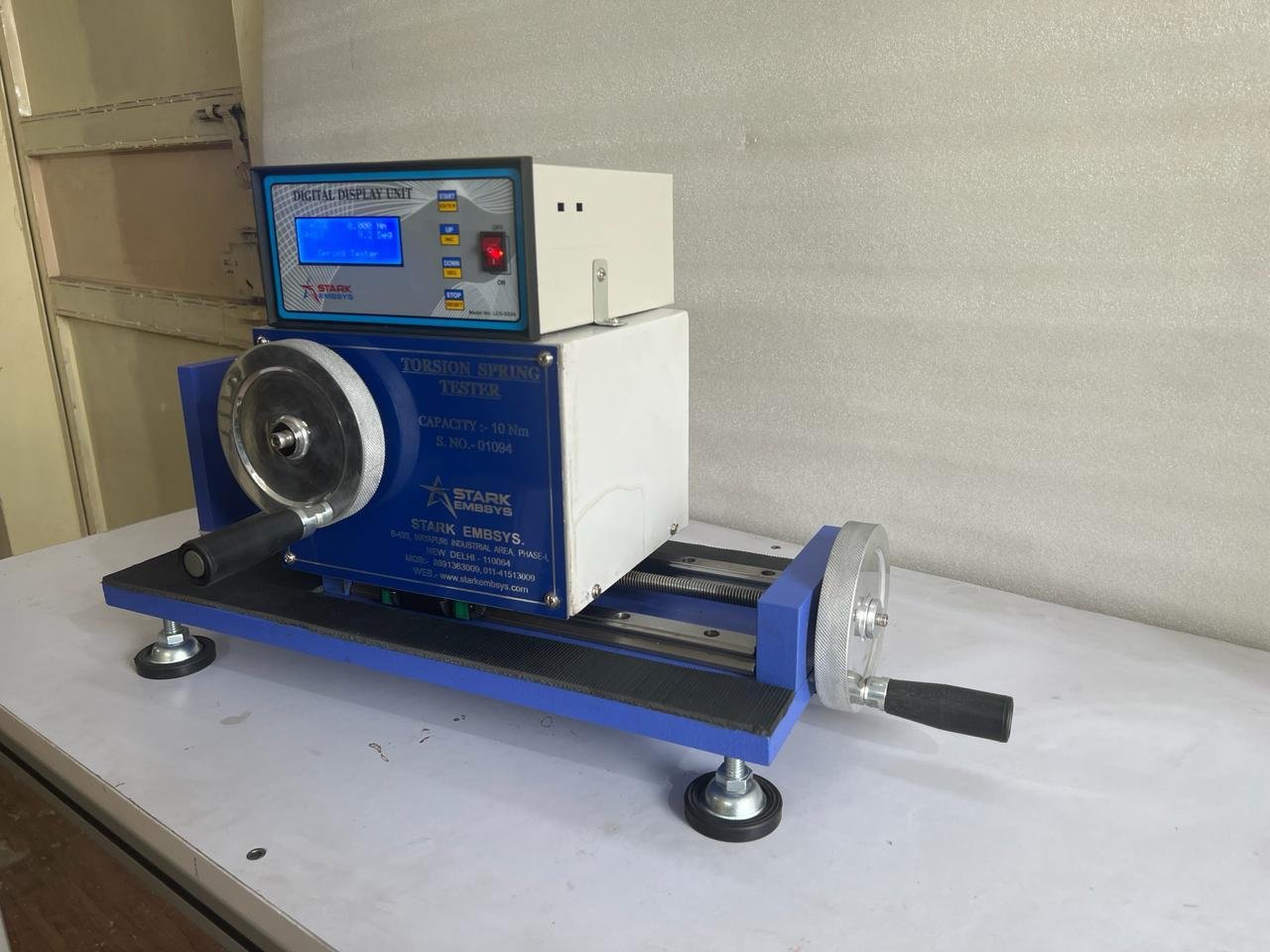

Torsion Spring Testing Machine

Torsion Spring Testing Machine

  • Availibility: In Stock
  • Categories : Equipment

Star Embedded Systems Pvt Ltd is a reputed Torsion Spring Testing Machine Manufacturers. To check the torsions of springs, we have been an experienced firm for designing such a device. Our quality is assured from the initial stage of production that is while selecting the raw material, which is sourced from a trusted high quality producing vendor. With a guarantee on the quality standards and a complete year warranty, choose Star Embedded Systems for torsion springs.

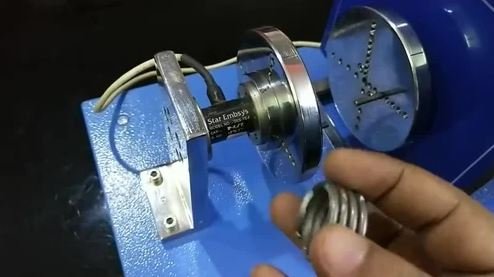

The important characteristic of the machine is also the presence of transducers that electronically measures torque and rotational position. Movable pins and fixture plates are used for adjusting in accordance to the spring configurations. When the motor is attached, operation becomes easy for setting as well the accuracy is increased.

Enquiry Us
Product Description
Choose the best Torsion Spring Testing Machine Manufacturers

Our team of trained professionals, engineers and managers are experts for manufacturing Torsion Spring Testing Machine. The quality of the product is never compromised as the standards are set as per the market, competitors and the international product quality standards.

Our customer-oriented service is always a priority while designing, manufacturing and supplying the product, which is a unique to our services. We have been able to muster a large number of patrons due to the same. Ease in order and payment mode is another features of our service.

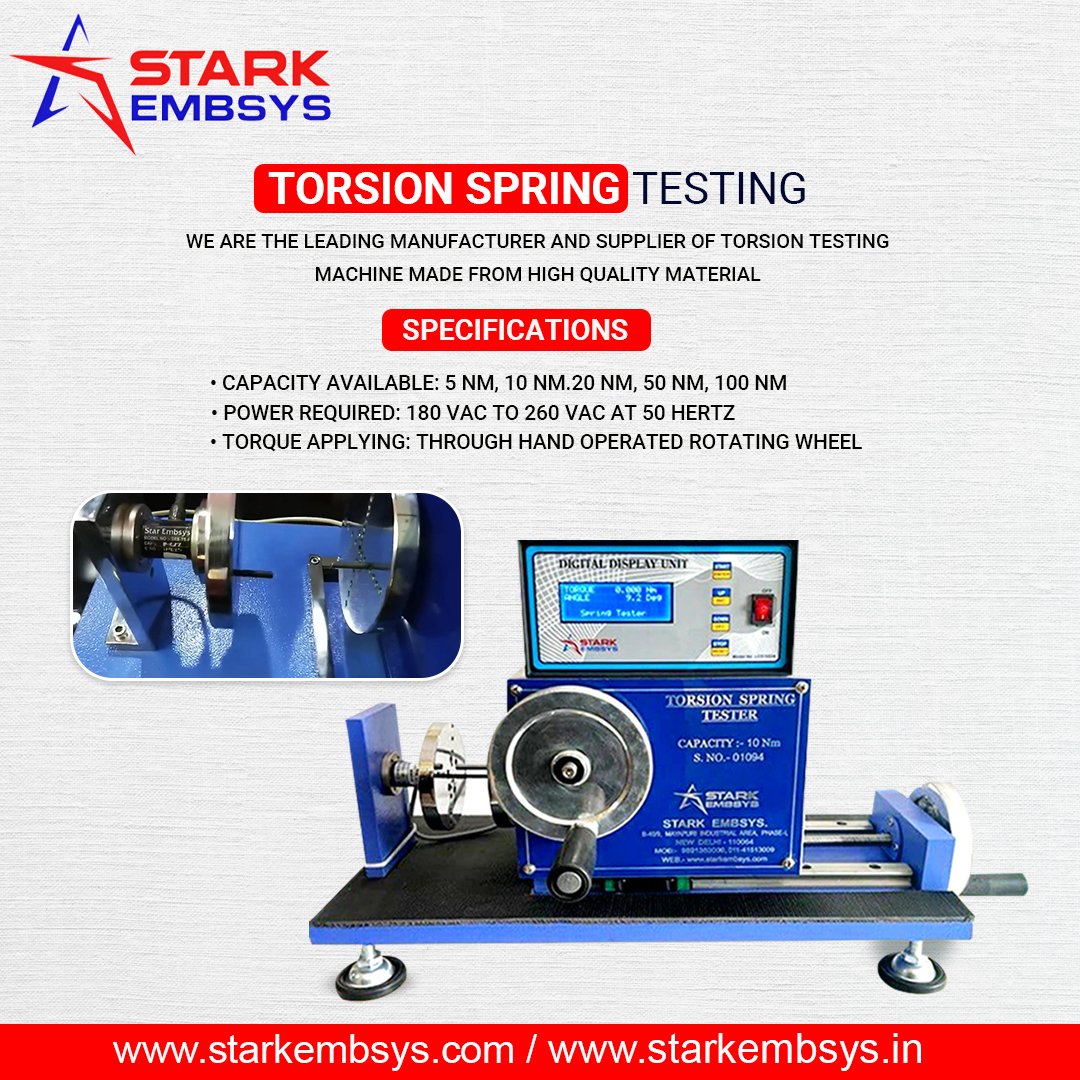

Specifications
Brand Stark Embsys
Capacity 5, 10, 20, 50, 100, 200 Nm
Type Universal, CW and CCW
Warranty 12 months from the date of installation
Calibration NABL / NPL Calibrated (Optional)
Least Count 0.1 Degree (Deflection)
Measuring Units Nm, NCm, KgCm selectable
Maximum Deflection 180 Degree
Maximum Deflection 180 Degree
Power required 180 to 260 VAC at 50 Hertz
Accuracy + 1 % of the reading
Display Microcontroller based 6 Digit Digital Display
Torque applying Through hand operated rotating wheel
