Product Description
What can you check through this machine?

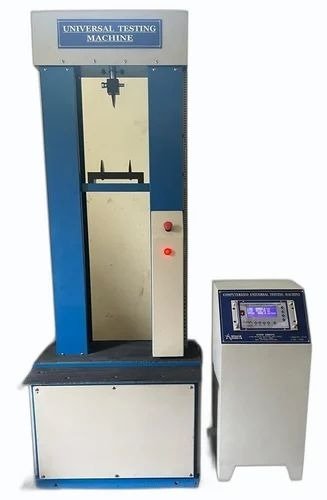

The Computer controlled equipment is used to test tensile strength and
elongation of a wide
range of materials. The
parameters that can be measured are Flexural, Compression, Bending,
Shearing, Peeling, Tear &
other tests are possible
through special grips & fixtures.
Force Measurement
- Force is measured by Electronic Load Cells of high accuracy.
- Two Load-cells are used: One each for higher and lower strength
material.
Elongation Measuring Device
- This is a Built-in Device
- Through the cross head movement by incremental encoder, elongation is
measured
- For range & resolution, refer specification table
Batch Test Facility
In a batch test, statistical analysis report is generated for the minimum,
maximum, mean and C.V % of the strength and
elongation.
Cyclic Test Facility
This is used for rubber belting, where loading and unloading of specimen is
automatic for a maximum of 999 cycles. With
5% tolerance, specimen can be stretched between the given load or elongation
limit.
Specifications
| Capacity |
100, 200, 500Kgf |
| Load applying |
Speed controlled Motorized operation |
| Calibration |
NABL / NPL Calibrated (Optional) |
| Warranty |
12 months from the date of installation |
| Type |
Universal,Tension & Compression |
| Least Count |
0.01mm (Deflection) |
| Measuring Units |
N,KN,Kgf (Optional) |
| Accuracy |
+ 1% of the reading |
