A servo-hydraulic testing machine is used to control the axial load. The specimen is placed in a high-pressure loading cell surrounded by fluid. The specimens are cylindrical in shape with a diameter of 30.0 mm and length of 60.0 mm, precompacted to 10 MPa. The loading of the specimens is controlled independently in the radial and axial direction. The loading path corresponds to the conventional triaxial compression test with a pressure range up to 200 MPa. The material properties for simulation of powder are given in Box 9.3.

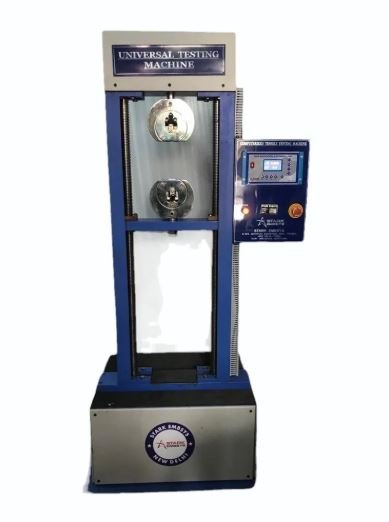

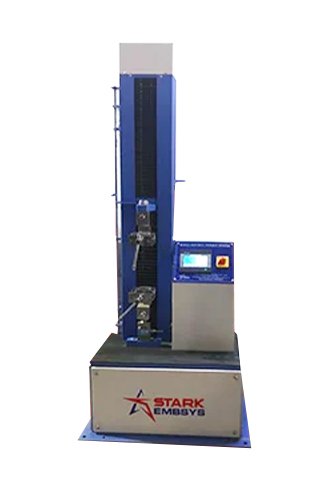

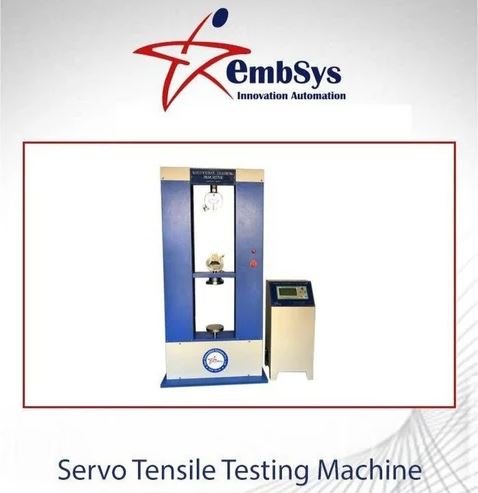

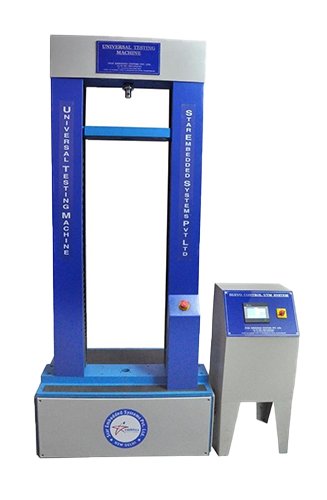

Servo-Hydraulic Universal Testing Machines are manufactured 600, 1000 and 2000 kN capacities. The double acting servo actuator, which is integrated on the upper crosshead, has a long piston stroke which makes vertical testing space accessible for easy and efficient testing of different samples lengths. Load cell for measuring the load is mounted between lower grip and base plate.
Multifunctional Remote Control Hand Set designed for more practical process than Electronic Control Unit and PC. Piston can be moved up-down, can be adjusted test speed, can be adjusted position of grips and the jaws can be open/close by Multifunctional Remote Control Hand Set. Able to stop at maximum upper and lower position and automatically suspend when can be reached to maximum deformation of capacity should been with Remote Control Head Set.
UTM-0540 Automatic Extensometer, 10-300 mm gauge length, 0,1 μm accuracy. These kind of extensometers are fully automatic computer-controlled and used for flat and round specimens with different measurement distance. By means of high sensitivity it can even used on very delicate materials.
| Usage/Application |
Industrial
|
| Capacity |
50 KG to 10 Ton.
|
| Material |
Mild Steel
|
| Display Type |
Computerised
|
| Brand |
AStark Embsys
|
| Operating Mode |
Automatic
|
| Voltage |
220V /440V.
|
| Speed |
0.0005 to 10000 mm/min.
|
